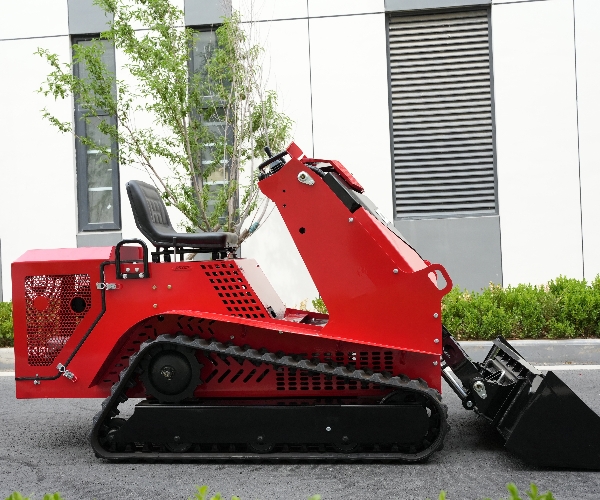

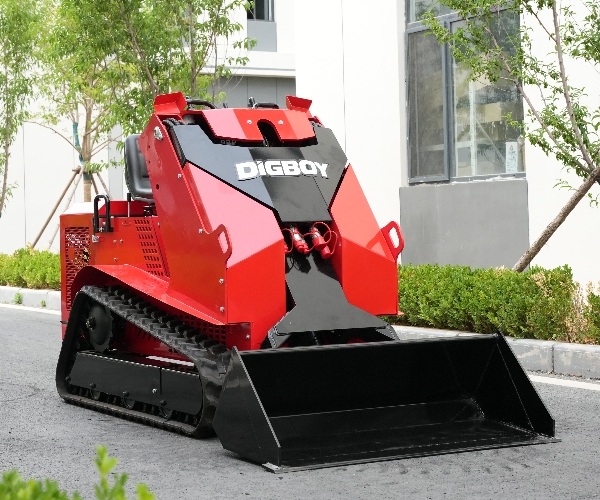

Skid Steer Track Loader with Seat DBL-T490
DIG-BOY DBL-T490 sit-on loader combines heavy-duty lifting with a comfortable ride, so you can maximize productivity without the fatigue.
Get My DBL-T490 Factory-Direct Price
Sitting Mini Skid Steer Loader
Are you tired of being exhausted after a long day on a bumpy, uncomfortable stand-on loader? Is operator fatigue slowing down your projects and leading to costly mistakes?
This isn’t just about comfort; it’s about your bottom line. A tired operator is a slow, inefficient operator. You’re losing hours of peak productivity every afternoon, extending your project timelines and shrinking your profit margins.
Take a seat and boost your profits with the DIG-BOY DBL-T490. This isn’t just a loader; it’s your mobile command center. Because its comfortable, seated design and smooth pilot controls eliminate operator fatigue, so you can work at 100% efficiency all day long. With its impressive 1,200-kg rated operating capacity and best-in-class reach, you can load trucks faster, move materials easier, and finish jobs sooner.
DBL-T490: Comfort and Power by the Numbers
Key Specifications
| Bucket Capacity | 0.12m³ |
| Operating Weight | 1200kg |
| Maximum Operating Height | 2,514 mm/98.98in |
| Maximum Load | 400KG |
Engine
| Engine Brand | Rato R740/Briggs Stratton/Koop/Yanmar 380 |
| Engine Standard | EPA/EURO 5 |
| Engine Power | 14-17.8KW |
| Number of Cylinders | 2/3 |
Dimension
| Overall Length | 2,644 mm/104.09in |
| Overall Width | 1,089 mm/42.87in |
| Overall Height | 1,872 mm/42.87in |
Other Parameters
| Travel Speed | 0-6km/h |
| Working Pressure | 17-21bar |
| Total Length without Bucket | 2,000mm/78.74in |
| Unloading Height | 1,429mm/56.26in |
| Unloading Distance | 595mm/23.43in |
| Length of Tail | 500mm/19.69in |
| Bucket Width | 1,050mm/41.34in |
| Height to Bucket Pin | 1,933mm/76.1in |
Engineered for a Better Workday

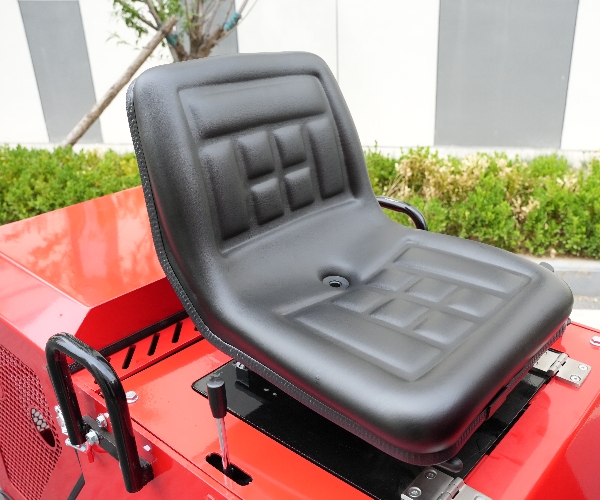

Seat Type ->
All-Day Productivity:
The ergonomic ride-on platform and comfortable seat provide a wider view to the sides. This reduces the operator fatigue that kills productivity.

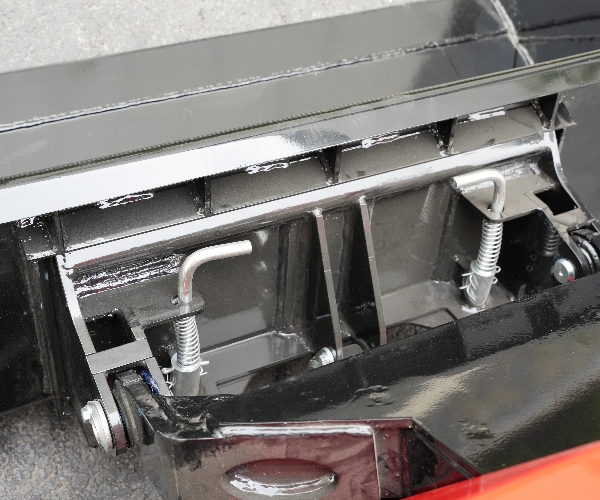

Attachment Interfaces ->
A Universe of Capabilities:
Two attachment interfaces help you make quick work of grading, backfilling, digging, and other tasks. The possibilities are endless.
Durable Exterior Panels ->
Built for the Real World:
The body’s exterior panels are made from high-strength steel. This ensures maximum strength and durability while providing excellent component protection.

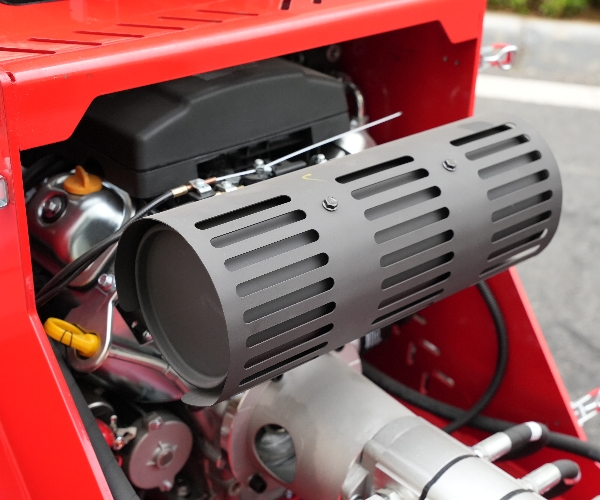

Powerful Engine ->
Power Without Complication:
You’ll experience greater performance with the DIG-BOY DBL-T490. Powered by a high-torque, non-DPF engine, it delivers plenty of muscle to get the job done. A new, direct-drive system also eliminates belts for less maintenance and more uptime.

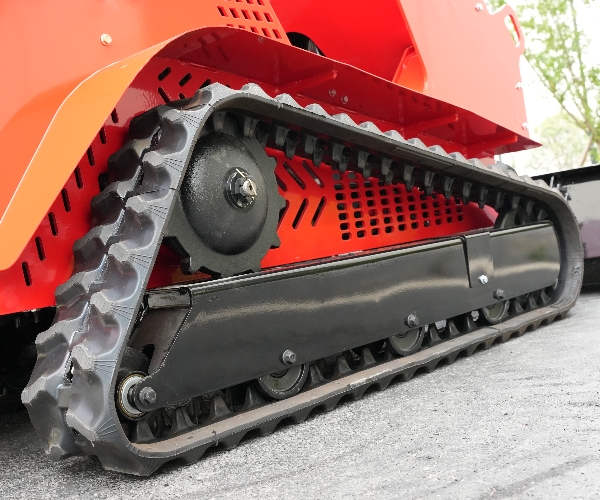

Sealed Rollers ->
Less Maintenance, More Profit:
Permanently lubricated (sealed) rollers and idlers reduce undercarriage maintenance and leave more time for your job site tasks. The DIG-BOY DBL-T490 also features maintenance-free bushings in the work group, which support increased uptime and lower your operating costs.
Your All-in-One Business Solution
As a mini skid steer supplier from China, we understand your need for attachments. Our mini skid steers come equipped with a quick-change system.
Skid Steer Grapple
Lift and move loose materials such as manure, bedding, and hay.
Pallet Fork
Move bulky, bagged or palletized material quickly and easily.
Grapple
Attachment with the brute force and agility to get the tough jobs done.
Hydraulic Hammer
attachment with the brute forceand agility to get the tough jobsdone.
Angle Broom
Clear away dirt, dried mud, lightsnow and other debris.
Ride On Mini Skid Steer
DIG-BOY is a trusted and reliable manufacturing company, engineering equipment for the construction, agricultural, forestry, and landscaping industries. It’s our core belief that no matter what site you’re working on—or its condition—you should be able to complete the task at hand quickly and with ease. That’s why we make machines that help you get more done in more places than you ever thought possible.
Today, our global team of over 300 professionals designs, engineers, and builds our equipment not only to be different, but to be the best. We are relentlessly focused on delivering the most durable and high-performing machines that provide an unbeatable return on your investment, backed by over 15 years of industry expertise.
Stand on Skid Steer Supplier with Customized Solutions
DIG-BOY compact machines are popular and trusted in the global market. So far, we have successfully exported our equipment to Southeast Asia, America, Europe, and the Middle East, proving our capability to meet diverse international standards and regulations. Our extensive experience in global logistics ensures a smooth, reliable delivery process.
We understand that every market is unique. We can customize new models based on your specific customer needs and market preferences. Currently, we offer a wide range of options for renowned engine brands (like Kubota, Perkins, Yanmar), cabin types, drive systems, dozens of specialized attachments, and even custom machine colors to give your business a competitive edge.
Explore Our Full Range of Loaders
Your Sit-On Loader Questions, Answered
All-day comfort. For jobs that require long hours of operation, a seated position dramatically reduces operator fatigue, leading to higher productivity and better safety.
Peace of mind. It protects your investment from unexpected repair costs. We stand behind our quality, so you can buy with confidence.
It's a critical safety feature. It locks the controls to prevent accidental movement when you're getting in or out of the machine.
Absolutely. Our loaders are designed to be versatile. You can expand your services and profitability by adding new attachments at any time as your business grows.
Not at all. The machine is designed with an excellent line of sight to the attachment and the surrounding area. The seating position is optimized for both comfort and a clear, commanding view of the work being done.
