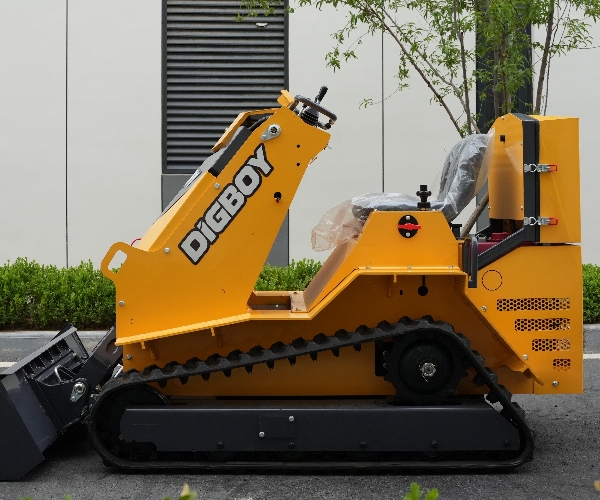

Sitting Mini Tracked Skid Steer Loader DBL-T390
DIG-BOY DBL-T390 sit-on loader combines heavy-duty lifting with a comfortable ride, so you can maximize productivity without the fatigue.
DBL-T390 | 15HP
Ride On Mini Track Loader
Are you tired of being exhausted after a long day on a bumpy, uncomfortable stand-on loader? Is operator fatigue slowing down your projects and leading to costly mistakes?
This isn’t just about comfort; it’s about your bottom line. A tired operator is a slow, inefficient operator. You’re losing hours of peak productivity every afternoon, extending your project timelines and shrinking your profit margins.
Take a seat and boost your profits with the DIG-BOY DBL-T390. This isn’t just a loader; it’s your mobile command center. Because its comfortable, seated design and smooth pilot controls eliminate operator fatigue, so you can work at 100% efficiency all day long. With its impressive 661-pound rated operating capacity and best-in-class reach, you can load trucks faster, move materials easier, and finish jobs sooner.
DBL-T390: Comfort and Power by the Numbers
Key Specifications
| Operating Weight | 750 kg / 1,653 lb |
| Rated Operating Capacity | 200 kg / 441 lb |
| Maximum Operating Capacity | 300 kg / 661 lb |
| Bucket Capacity | 0.12 m³ |
| Maximum Breakout Force | 3.5 KN |
| Driving Speed | 0-6 km/h / 0-3.7 mph |
Engine
| Engine Brand | Rato/Briggs Stratton |
| Emissions Standards | EPA/EURO5 |
| Rated Power | 11.2 kw / 15 hp |
| Rated Speed | 3000 rpm |
| Number of Cylinders | 1 |
| Air Intake Way | Natural aspiration |
Dimension
| Maximum Operating Height | 2,470 mm / 97.2 in |
| Height to Bucket Pin | 1,970 mm / 77.6 in |
| Total Height | 1,900 mm / 74.8 in |
| Total Length without Bucket | 2,450 mm / 96.5 in |
| Unloading Height | 1,500 mm / 59.1 in |
| Width of Vehicle | 970 mm / 38.2 in |
| Bucket Width | 1,000 mm / 39.4 in |
| Ground Clearance | 210 mm / 8.3 in |
| Track Base | 800 mm / 31.5 in |
| Length of Tail | 970 mm / 38.2 in |
Other Parameters
| System Operating Pressure | 17 bar |
| Fuel Tank Capacity | 5 L |
| Track Size | 18*8.5-8 |
Engineered for a Better Workday
Integrated Ride-On Platform ->
All-Day Productivity:
The ergonomic ride-on platform and comfortable seat allow for high performance in tight work areas, reducing the operator fatigue that kills productivity.
Attachment Interfaces ->
A Universe of Capabilities:
Two attachment interfaces help you make quick work of grading, backfilling, digging, and other tasks. The possibilities are endless.
Durable Exterior Panels ->
Built for the Real World:
The body’s exterior panels are made from high-strength steel. This ensures maximum strength and durability while providing excellent component protection.
Powerful Engine ->
Power Without Complication:
Experience greater performance with a high-torque engine. Because it’s a powerful non-DPF engine, so it delivers plenty of muscle while a direct-drive system eliminates belts for less maintenance.
Maintenance-Free Bushings ->
More Working, Less Greasing:
The maintenance-free bushings eliminate several grease points. This allows you to reduce the time you spend on daily maintenance and maximize your time on the job.
Your All-in-One Business Solution
As a mini skid steer supplier from China, we understand your need for attachments. Our mini skid steers come equipped with a quick-change system.
Skid Steer Grapple
Lift and move loose materials like manure, bedding, and hay.
Pallet Fork
Move bulky or palletized material quickly and easily.
Auger
Ideal for digging holes for posts, piers, poles, or trees.
Grapple
The ultimate tool for cleanup. Securely grab and move brush, logs, and demolition debris, turning a manual job into a simple task.
Clear trails or construction sites
Grade, level, and push material with precision. Perfect for site prep, backfilling trenches, and leveling ground fast.
Dozer Blade
Clear away dirt, dried mud, light snow, and other debris. Keep your job site clean and safe, or add street sweeping to your services.
Hydraulic Hammer
Demolish concrete with brute force. This attachment breaks up sidewalks, patios, and rock, saving you from back-breaking jackhammer work.
Angle Broom
Your Ultimate Cleanup Tool. Keep job sites safe and clean. Effortlessly clear away dirt, dried mud, light snow, and other debris from any hard surface.
Ride On Mini Skid Steer
DIG-BOY is a trusted and reliable mini track loader manufacturer. We build our equipment not only to be different, but to be the best.
Perfect Machine for Your Fleet
Our compact machines are popular in the global market. We can customize new models based on your needs, offering options for engines and attachments.
Find More Similar Models To Compare
Your Sit-On Loader Questions, Answered
All-day comfort. For jobs that require long hours of operation, a seated position dramatically reduces operator fatigue, leading to higher productivity and better safety.
Peace of mind. It protects your investment from unexpected repair costs. We stand behind our quality, so you can buy with confidence.
It's a critical safety feature. It locks the controls to prevent accidental movement when you're getting in or out of the machine.
Absolutely. Our loaders are designed to be versatile. You can expand your services and profitability by adding new attachments at any time as your business grows.
Not at all. The machine is designed with an excellent line of sight to the attachment and the surrounding area. The seating position is optimized for both comfort and a clear, commanding view of the work being done.
