Mini Skid Loader - Wheel Type

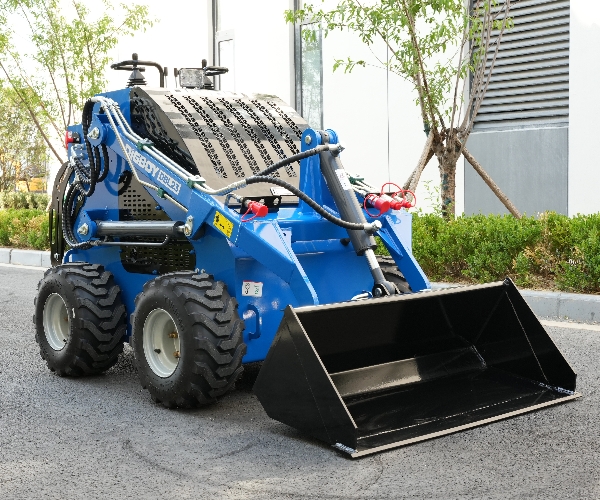

The DIG-BOY DBL-S490 wheeled skid loader delivers maximum power and speed for your toughest jobs. Stop wasting time with walk-behind machines.
DBL-S490 | 24HP
TAKE A BREAK FROM BACK-BREAKING WORK
Are you tired of spending all day on your feet behind a slow, clumsy walk-behind loader? Is your body aching while job site cleanup and material handling take forever?
This isn’t just exhausting; it’s costing you money. Every hour you waste is another job you can’t get to. Your competition is finishing faster, winning more bids, while you’re stuck with slow, back-breaking labor.
Take a seat and boost your profits with the DIG-BOY DBL-S490 wheeled mini skid steer loader. This isn’t just a loader; it’s your new business partner. Because its powerful 24HP engine and sit-on design let you work 2x faster than a walk-behind, so you can finish jobs in half the time, with zero fatigue. Get more done, earn more money, and go home without the back pain.
DBL-S490 Specifications
Key Specifications
| Bucket Capacity | 0.12 m³ |
| Operating Weight | 1200 kg / 2646 lb |
| Rated Load | 250 kg / 551 lb |
| Maximum Load | 350 kg / 772 lb |
| Maximum Lifting Force | 450 KN |
| Travel Speed | 0-6 km/h / 0-3.7 mph |
Engine
| Engine Model | Rato R740/Briggs Stratton/Koop |
| Emission Standard | EPA/EURO5 |
| Rated Power | 15 kw / 20.1 hp |
| Cylinders | 2 |
| Intake Method | Natural aspiration |
Dimension
| Maximum Operating Height | 2514 mm / 99.0 in |
| Height to Bucket Pin | 1933 mm / 76.1 in |
| Total Height | 1872 mm / 73.7 in |
| Total Length with Standard Bucket | 2644 mm / 104.1 in |
| Total Length without Bucket | 2000 mm / 78.7 in |
| Unloading Height | 1429 mm / 56.3 in |
| Unloading Distance | 595 mm / 23.4 in |
| Width of Vehicle | 1089 mm / 42.9 in |
| Bucket Width | 1050 mm / 41.3 in |
| Ground Clearance | 195 mm / 7.7 in |
| Track Base | 925 mm / 36.4 in |
| Length of Tail | 500 mm / 19.7 in |
Other Parameters
| Working Pressure | 17-21 bar |
| Fuel Tank Capacity | 10 L |
| Tire Size | 18*72 |
| Bucket Rotation Angle on Ground | 27° |
| Bucket Rotation Angle at Maximum | 34° |
DBL-T490 Features and Advantages

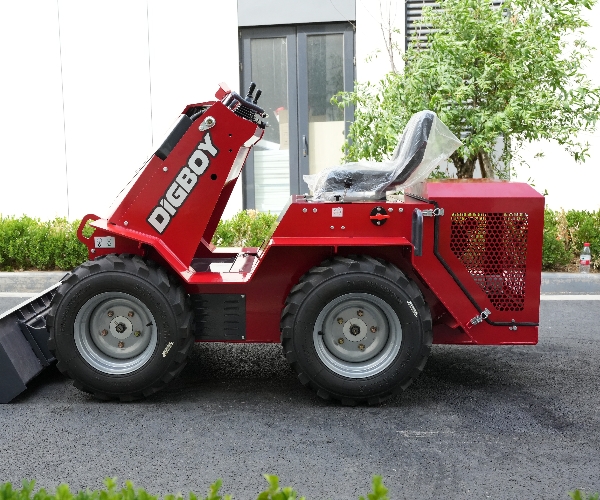

Compact Size ->
Access More Profitable Jobs:
Its slender design allows for easy navigation in tight spaces. Because you can get into backyards and through gates that larger machines can’t, so you can take on more jobs and increase your profitability.

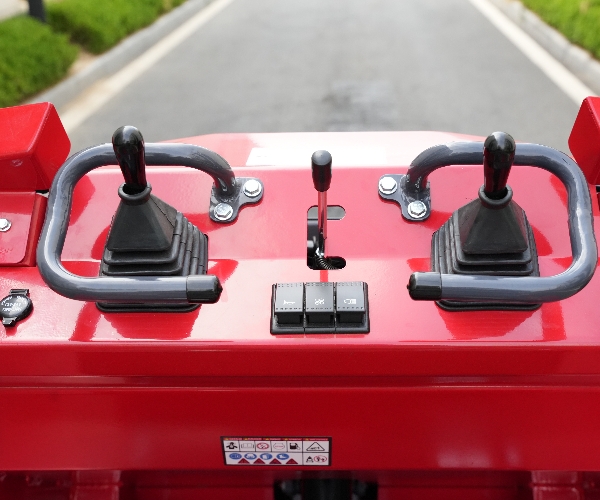

Joystick Controls ->
Effortless All-Day Operation:
The ergonomic ISO joystick controls provide finely tuned precision. Because they are so comfortable and intuitive to use, so you can operate all day with less fatigue and greater accuracy.
Minimal Ground Disturbance ->
Protect Your Work, Protect Your Profits:
The wheeled design is perfect for work on finished surfaces. Because it minimizes damage to lawns, pavers, and concrete, so you avoid costly repair work and keep your clients happy.
Replace Manual Labor ->
Multiply Your Earning Power:
DIG-BOY mini track loaders replace manual labor and wheelbarrows. They deliver fast cycle times, strong breakout force, and excellent pushing ability, allowing one person to do the work of three.
Safety Features ->
Protect Your Most Valuable Asset:
Neutral-start interlocks prevent accidental starting. An attachment shutdown system engages when the operator leaves the seat. We build our machines to protect you, your crew, and your investment.
Top 3 Attachments for Mini Track Loader
4IN1 BUCKET
| Parameter | Value |
| dimensions(mm) | 1162x700x500 / 1050*700*500 |
| weight | 127kg / 120kg |
| capacity | 0.14m³ / 0.12m³ |
| teeth type | optional |
| Parameter | Value |
| dimensions(mm) | 1200x1054x645 |
| brush diameter | 500mm |
| working width | 1000mm |
| weight | 165kg |
STUMP GRINDER
| Parameter | Value |
| dimensions(mm) | 951x718x704 |
| weight | 200kg |
| max. stump height | 650mm |
| max. cutting depth | 330mm |
| teeth number | 16pcs |
| mechanical type | optional |
Your Reliable Partner from China
DIG-BOY is a trusted and reliable wheeled mini skid steer loader manufacturer from China. We build our equipment not only to be different, but to be the best. We help you get more done, in more places, than you ever thought possible.
The Perfect Machine for Your Needs
Our compact machines are popular in the global market. We can customize new models based on your needs, offering options for engines, drive types, attachments, and machine colors.
Explore Our Full Range of Loaders
Your Skid Loader Questions, Answered
Speed and less fatigue. A sit-on loader is up to 2x faster and allows you to work all day without getting tired. This means more work done and more profit.
Peace of mind. It protects your investment from unexpected repair costs. We stand behind our quality, so you can buy with confidence.
It's a critical safety feature. It locks the controls to prevent accidental movement when you're getting on or off the machine.
Absolutely. Our loaders are designed to be versatile. You can expand your services and profitability by adding new attachments at any time.
Lower long-term costs. Wheeled loaders have fewer moving parts in the undercarriage, which means less maintenance and lower replacement costs for tires compared to tracks.
