Mini Excavator Attachments
Stop turning down work. Unlock the true profit potential of your machine with attachments that transform it into a multi-tool powerhouse.
Choose Your Attachments for Mini Excavator
With DIG-BOY attachments, you can break that cycle. In less than 2 minutes, our quick-coupler system allows you to transform your digger into a powerful hydraulic breaker, a high-torque auger, or a precision grapple. Because each attachment unlocks a new, high-demand service, so you can instantly multiply your revenue streams with the machine you already own.
PALLET FORK
| Parameter | Value |
| dimensions(mm) | 1200x1000x870 |
| forks length(mm) | 1000 |
| weight(kg) | 120kg |
| rated load(kg) | 700kg |
4IN1 BUCKET
| Parameter | Value |
| dimensions(mm) | 1162x700x500 / 1050*700*500 |
| weight | 127kg / 120kg |
| capacity | 0.14m³ / 0.12m³ |
| teeth type | optional |
SNOW ANGLE SWEEPER
| Parameter | Value |
| dimensions(mm) | 1200x1054x645 |
| brush diameter | 500mm |
| working width | 1000mm |
| weight | 165kg |
PICK UP SWEEPER
| Parameter | Value |
| dimensions(mm) | 1200x1082x565 |
| brush diameter | 500mm |
| working width | 1000mm |
| weight | 180kg |

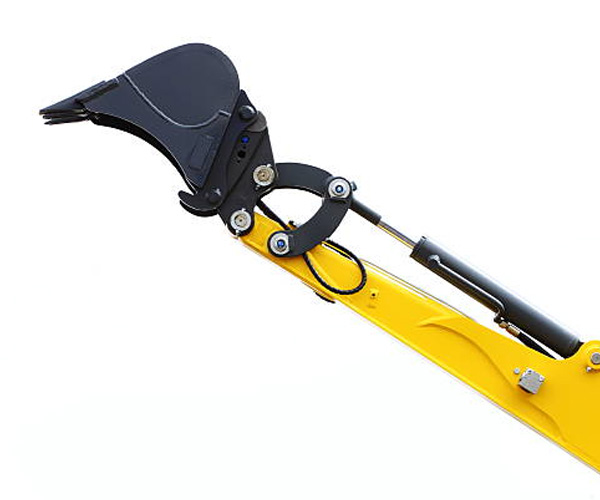

DIGGER ARM
| Parameter | Value |
| dimensions(mm) | 1200x640x280 |
| bucket width | 200mm |
| weight | 130kg |
BRUSH MOWER
| Parameter | Value |
| dimensions(mm) | 1247x1415x445 |
| working width | 1100mm |
| weight | 215kg |
| working height | 50mm |
| working flow | 30lpm |
TRENCHER
| Parameter | Value |
| dimensions(mm) | 1630x860x750 |
| working width | 120mm |
| weight | 172kg |
| working depth | =<800mm |
| working flow | 30-50 lpm |
ROTARY TILLER
| Parameter | Value |
| dimensions(mm) | 1320x567x501 |
| working width | 1050mm |
| weight | 115kg |
| working depth | 60-150mm |
| working flow | 30-50 lpm |
LEVELER
| Parameter | Value |
| dimensions(mm) | 1270x958x400 |
| working width | 1200mm |
| weight | 136kg |
BULLDOZER
| Parameter | Value |
| dimensions(mm) | 1250x677x540 |
| turning angle | ±30°(hydraulic) |
| weight | 130kg |
| mechanical type | optional |

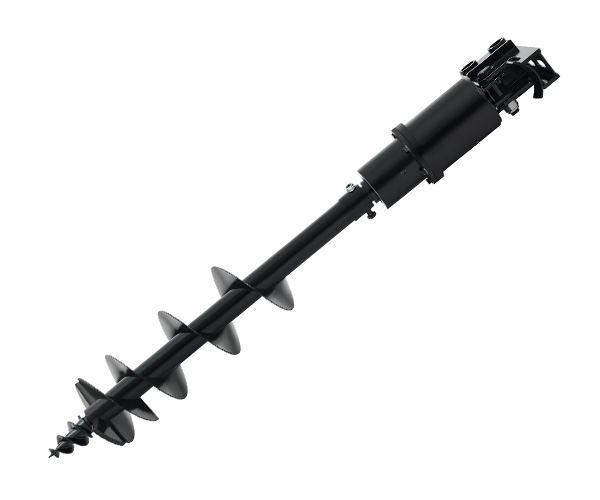

DRILL AUGER
| Parameter | Value |
| diameter(mm) | 150, 200, 300, 400, 500 etc. |
| working depth | 1000mm |
| weight | about 110kg-160kg |
| working flow | 30-50 lpm |

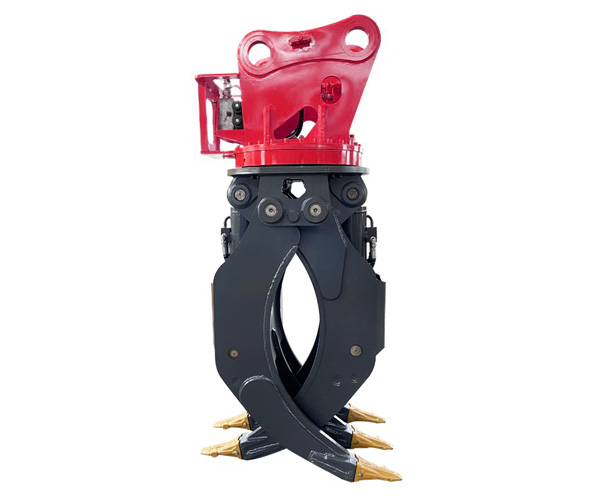

WOOD GRAPPLE
| Parameter | Value |
| dimensions(mm) | 960x920x931 |
| weight | 143kg |
| volume | 0.4m³ |
| open distance | 1238mm |
SNOW PLOW
| Parameter | Value |
| dimensions(mm) | 1500x1025x701 |
| turning angle | ±30°(hydraulic) |
| weight | 135kg |
| 1000mm width | optional 160kg |
| mechanical type | optional |
SNOW BLOWER
| Parameter | Value |
| dimensions(mm) | 1042x740x1025/695 |
| weight | 160kg |
| working width | 1000mm |
| max. working thickness | 330mm |
| max. snow removal distance | 8-12M |

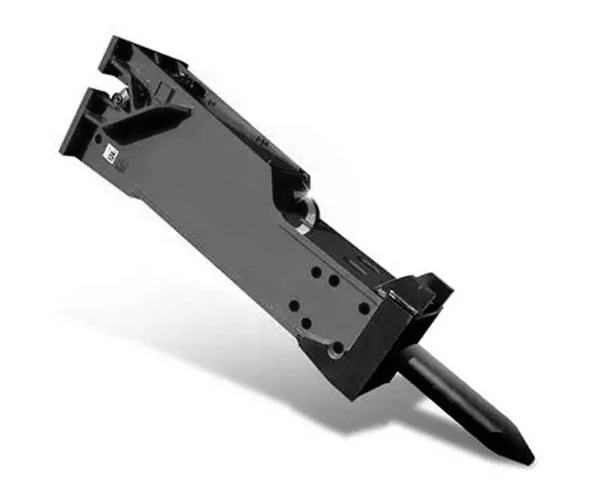

HAMMER
| Parameter | Value |
| rod bit diameter | 45mm |
| dimensions(mm) | 1250x600x400 |
| weight | 140kg |
| pressure | 8-11Mpa |
| impact force | 80-100J |
RAKE BUCKET
| Parameter | Value |
| dimensions(mm) | 1265x708x366 |
| weight | 110kg |
| volume | 0.3m³ |
| teeth distance | 46mm |

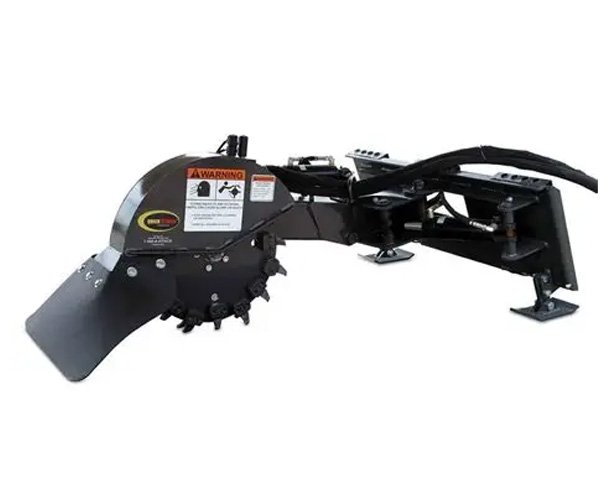

STUMP GRINDER
| Parameter | Value |
| dimensions(mm) | 951x718x704 |
| weight | 200kg |
| max. stump height | 650mm |
| max. cutting depth | 330mm |
| teeth number | 16pcs |
| mechanical type | optional |

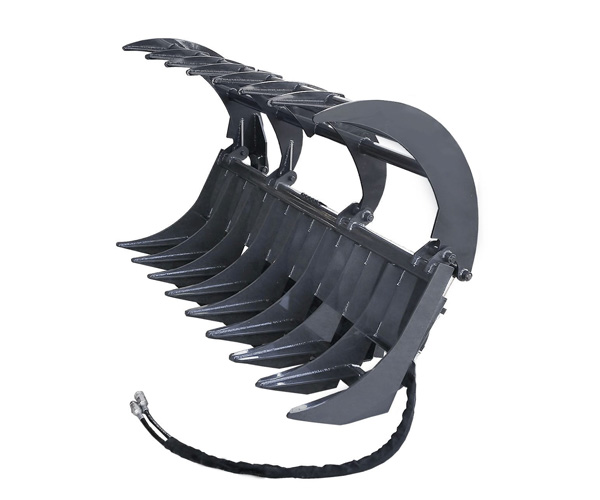

RAKE GRAPPLE
| Parameter | Value |
| dimensions(mm) | 1150x943x700 |
| weight | 150kg |
| volume | 0.4m³ |
| rake distance | 95mm |
Order Your Attachment With DIG-BOY Machiney
Not sure which attachment will deliver the best ROI for your business? Our experts can help. Tell us about your typical projects, and we’ll recommend the perfect tool to boost your profitability.
