7.5 Ton Wheeled Excavator For Sale
» The Ultimate Solution for Roadwork, Utilities, and Urban Construction Sites
Get Pricing on the DBE75B Wheeled Excavator
Future of Urban Excavation is Here

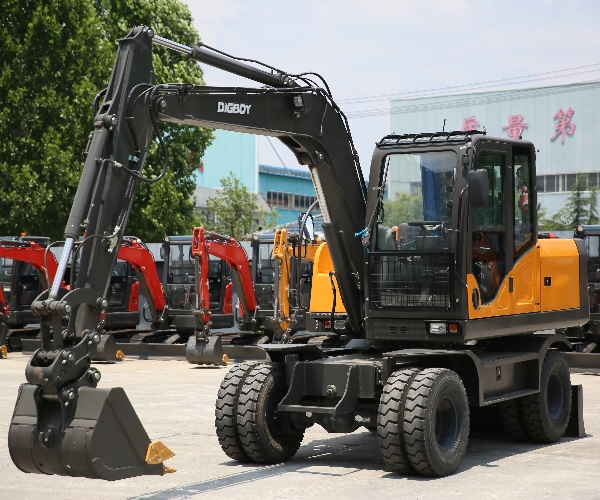

The DIG-BOY DBE75B is not just another excavator; it’s a mobile powerhouse. Because it’s equipped with a powerful 54.3kw Yanmar engine and a robust wheeled chassis, so it can travel between job sites without the need for a transport trailer, saving you significant time and money.
Fast cycle times, strong digging force, and excellent stability are carefully engineered into its design. This 7.5-ton construction excavator is truly effective and versatile, allowing you to do more than just dig. Because you can switch attachments in just minutes, so your team can complete tasks more productively, making this one of the best 7.5-ton excavators for maximizing your return on investment.
DBE75B Wheeled Excavator: Key Specifications
Each DBE75B is built with a reinforced chassis and frame, assembled with an imported hydraulic system for superior performance and reliability. Its flexible 360° rotation and powerful drive motors deliver the performance you need.
Key Specifications
| Bucket Capacity | 0.3 m³ |
| Swing Speed | 0-12 rpm |
| Gradeability | 25° |
| Max. Bucket Digging Force | 45 kN |
| Max. Arm Digging Force | 36 kN |
Engine
| Engine Model | YCF3065-T480 |
| Power/revolution speed | 48 kW / 2,200 rpm (64.4 hp / 2,200 rpm) |
Overall Dimension
| Dimension Length×Width×Height | 6,200×2,040×2,816 mm (244.1×80.3×110.9 in) |
| Cabin Height | 2,816 mm (110.9 in) |
| Axle Base | 2,400 mm (94.5 in) |
| Wheel(track) Distance | 1,536 mm (60.5 in) |
| Minimum ground clearance | 354 mm (13.9 in) |
| Tail Swing Radius | 2,000 mm (78.7 in) |
Other Parameters
| Tire Model | 8.25-16 |
| System Pressure | 24 MPa |
| Max. Digging Height | 6,297 mm (247.9 in) |
| Max. Dumping Height | 4,677 mm (184.1 in) |
| Max. Digging Depth | 3,612 mm (142.2 in) |
| Max. Vertical Digging Depth | 2,460 mm (96.9 in) |
| Max. Digging Radius | 6,248 mm (246.0 in) |
| Min. Swing Radius | 2,347 mm (92.4 in) |
| Max. Dozer Blade Lifting Distance | 310 mm (12.2 in) |
| Max. Dozer Blade Cutting Distance | 132 mm (5.2 in) |
DIG-BOY Advantage: Engineered for Profitability
Choose a high-quality 8t digger that ofers a long-lasting performance. what it can do goes beyond digging and loading. Not onlycan it handle tasks of smaller machines, but it’s also capable of tasks usually reserved for slightly bigger machines. provided withthe appropriate attachments.

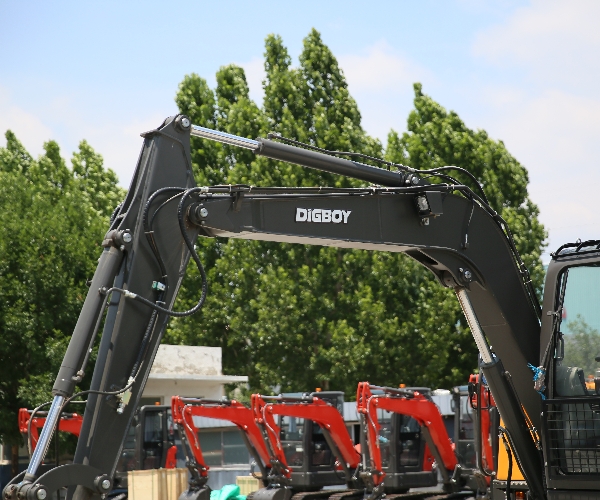

Because the DBE75B is equipped with a high-quality imported hydraulic system, so this 7.5-ton digger operates with exceptional smoothness and efficiency, giving you precise control and powerful performance.
Easy Control System
Because the imported multi-way valves allow for simultaneous, coordinated movements, so experienced operators can work faster and more intuitively, significantly boosting productivity.

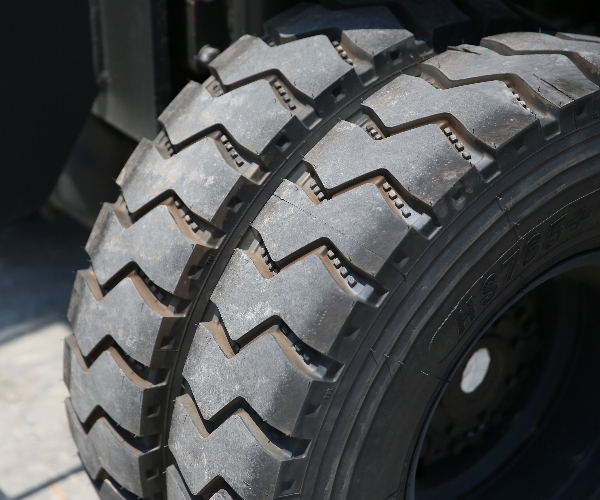

Tough Tires

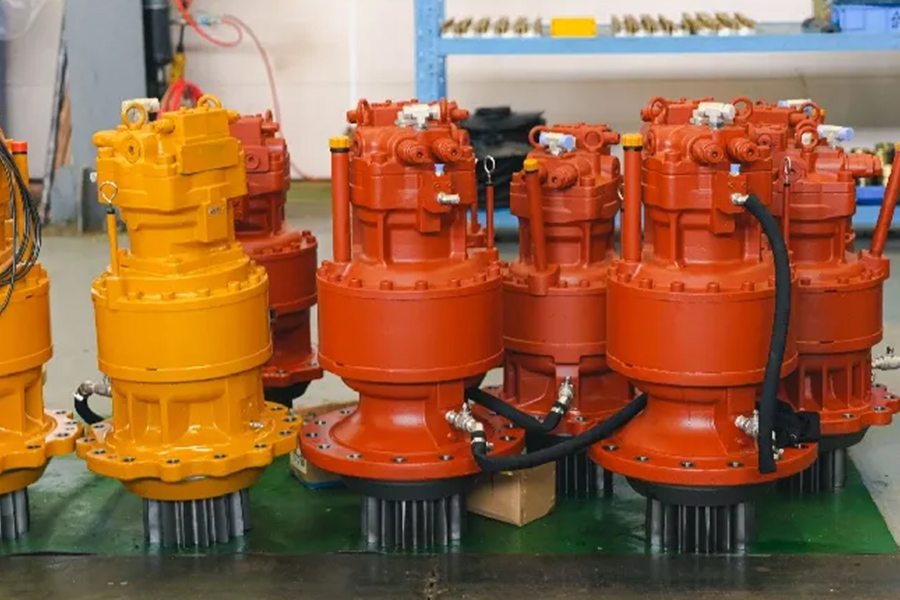

Because it uses durable, heavy-duty engineering tires and powerful drive motors, so the excavator can travel quickly on hard surfaces without causing damage, and serve for a long time under tough conditions.

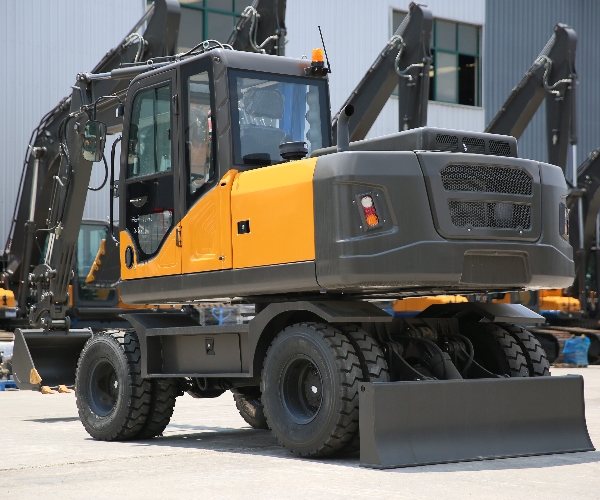

Thickened Chassis
Because our 7.5-ton excavator has a reinforced, heavy-duty wheeled chassis with extra thickness, so it provides a solid, stable platform for heavy digging and lifting, ensuring operator safety and machine longevity on any terrain.

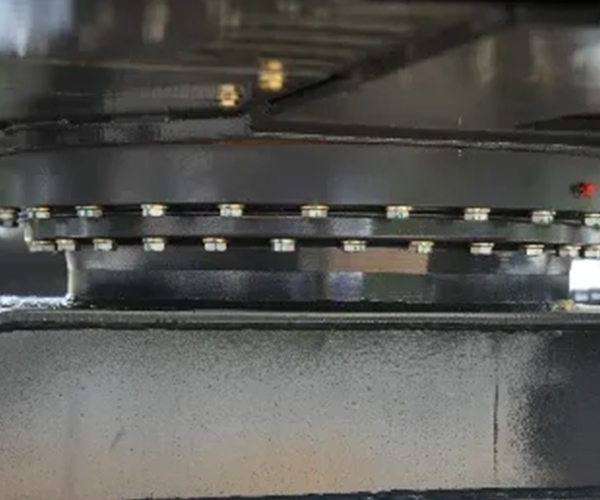

360° Rotating Base
Because you can navigate tight spots with its smooth, 360-degree rotating base, so you can work efficiently from different angles, digging and loading without repositioning the entire machine—a massive advantage in urban construction.
Designed for the Professional Operator
Standard Configuration: Easily monitor digging depths from the clear control panel.
Serviceability: Benefit from easy access to interior service points and a clear layout for maintenance checks.
Operator Comfort: Low-effort and responsive joysticks, powerful LED lights, and a stable wheeled platform ensure comfort and safety.
Custom Options: Tailor the machine to your needs with options for steel tracks, AC, a quick coupler, and more attachments.
Our Commitment: A Comprehensive One-Year Warranty
DIG-BOY provides a one-year standard warranty for all machine types, covering core components and parts failure. We will immediately ship brand-new replacements to your location. For hard-to-get pieces, we work tirelessly to minimize your downtime. If any issues arise within the first year of purchase, we will promptly address them and provide instant assistance.
8 Ton Excavator Awesome Features
- Bucket
Standard and hydraulic tilt buckets for digging and grading.
- Auger
Designed for construction and drilling holes in the ground.
- Quick Coupler
Enables fast, easy changes between excavator tools.
- Snow Blade
Perfect for clearing snow, making winter maintenance easier.
- Hydraulic Hammer
Breaks concrete, asphalt, and rock with powerful efficiency.
- Thumbs
For picking up and moving logs, debris, and demolition materials.
- Grapple
Securely grabs and lifts loose materials like scrap and rocks.
- Rake
Effective for leveling, land clearing, and site cleanup.

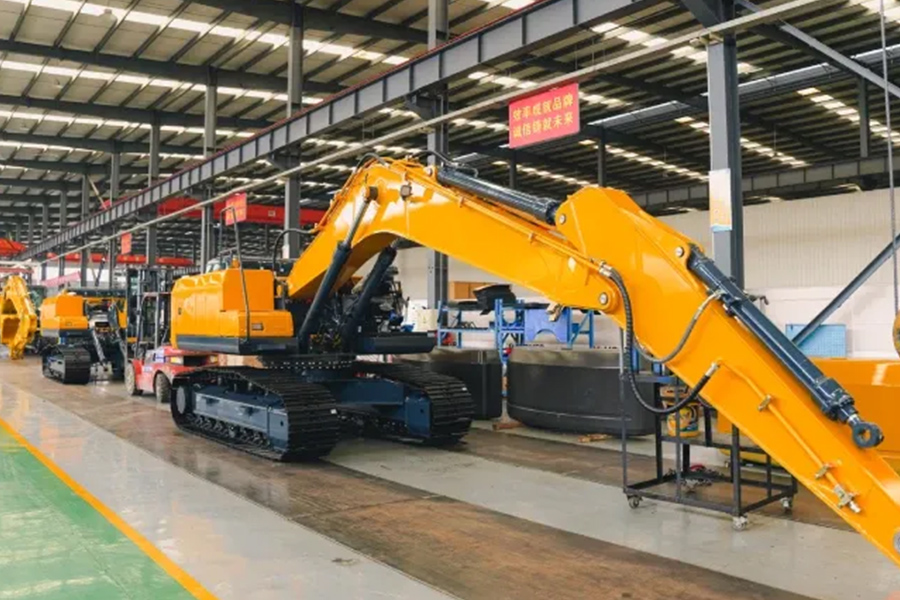

Visit Our Modern Excavator Manufacturing Facility in China
DIG-BOY owns an independent excavator factory, and we welcome partners from all over the world to visit. If you require technical assistance or OEM support, our team is always here to help.

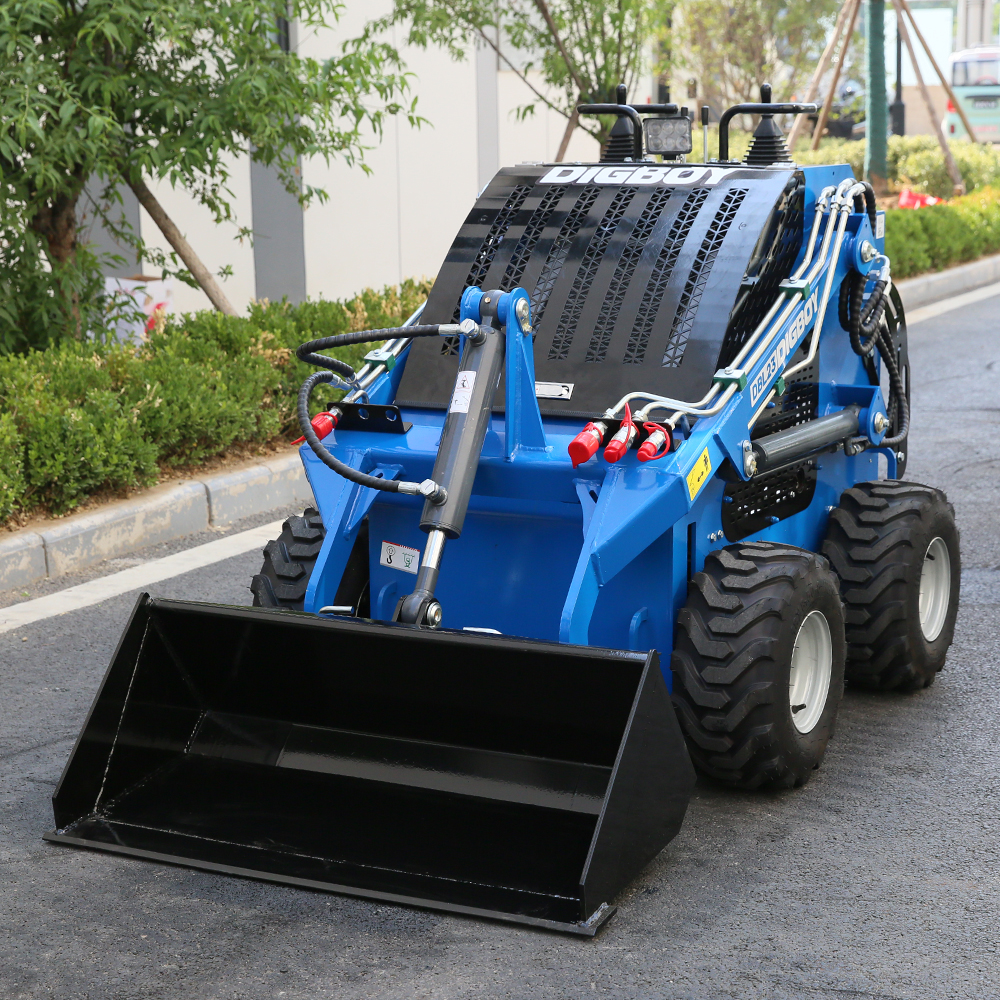

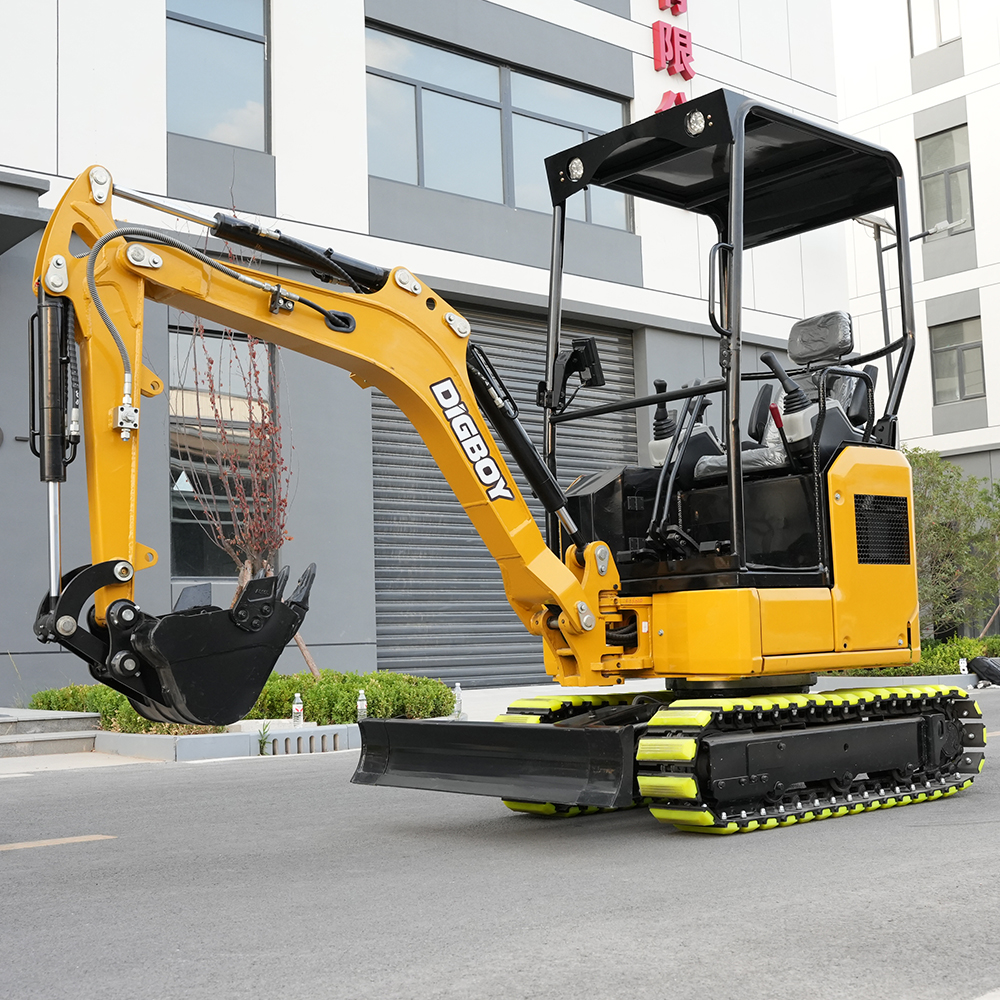

Explore Our Full Range of Construction Equipment
Ready to explore the full collection of DIG-BOY machines? Whether you need tracked excavators, loaders, or other machinery, our team has you covered.
Your Wheeled Excavator Questions, Answered
Mobility. Its biggest advantage is the ability to drive on roads and hard surfaces without causing damage, and to travel between nearby job sites without a trailer. This saves enormous amounts of time and money, especially for utility and municipal contractors.
With its outriggers and dozer blade deployed, the DBE75B provides a very stable digging platform, comparable to a tracked excavator of similar size. This ensures you have the power and confidence to handle heavy lifting and tough digging.
Service intervals are similar to tracked models, with regular checks on the engine, hydraulics, and lubrication points. We recommend following the detailed service schedule in the operator's manual to ensure maximum reliability.
DBE75B offers substantial digging depth, suitable for most utility, foundation, and trenching work. For the exact maximum digging depth and reach specifications, please request the official spec sheet from our sales team.
Road regulations vary by country and region. While the DBE75B is designed for road travel, you must check your local vehicle and traffic laws to ensure compliance regarding lighting, signaling, and permits before operating on public roads.
When you import a 7.5-ton excavator from us, you get a machine that is purpose-built for high performance and value. We combine a powerful Yanmar engine and imported hydraulics with a robust design, offering you a reliable and profitable machine at a highly competitive factory-direct price.
