2 Ton Chinese Mini Excavator For Sale
» Trusted by Professionals for Its Superior Performance and Reliability | Your Ideal Compact Digger
Get Your Quote on the DBE25A & DBE20B Models
Professional Choice from a Leading China Mini Excavator Supplier

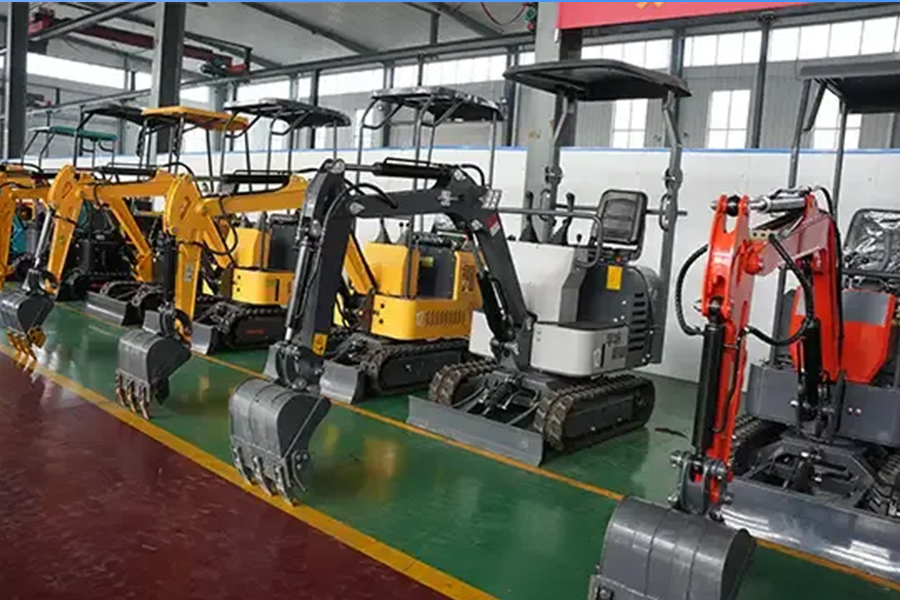

When you need more power than a 1.5-ton machine but still require access to tight job sites, the 2-ton class is the answer. As a professional China mini excavator supplier, DIG-BOY invested heavily in our manufacturing capabilities. Because we utilize advanced laser cutting and robotic welding technology, so every excavator we produce has superior structural integrity and a flawless finish.
Our DBE25A and DBE20B models come with the option for world-class Kubota or Yanmar engines. Because they are equipped with imported hydraulic pumps and pilot controls, so you get the smooth, precise operation needed for complex jobs like landscaping, utility trenching, and small-scale demolition.
Compare Our 2 Ton Models: DBE25A vs. DBE20B
DBE25A Model
Key Specifications
| Operating Weight | 2000 kg / 4409 lb |
| Bucket Capacity | 0.04 m³ |
| Bucket Digging Force | 16 KN |
| Gradeability | 40° |
Engine
| Engine Model | Laidong 385B / Perkins / Yanmar 3TNV80F |
| Engine Power | 18.6 kw / 25 hp |
Overall Dimension
| Overall Dimensions (L*W*H) | 3700 x 1100/1400 x 2203 mm / 145.7 x 43.3/55.1 x 86.7 in |
| Max. Digging Height | 3200 mm / 126.0 in |
| Max. Dumping Height | 2290 mm / 90.2 in |
| Max. Digging Depth | 2241 mm / 88.2 in |
| Max. Digging Radius | 3800 mm / 149.6 in |
| Swing Radius | 1620 mm / 63.8 in |
| Undercarriage Width | 1100 – 1400 mm / 43.3 – 55.1 in |
| Ground Clearance | 385 mm / 15.2 in |
| Track Contact Length | 1220 mm / 48.0 in |
| Track Width | 230 mm / 9.1 in |
Other Parameters
| Control System | Hydraulic Pilot Control |
| Pump | Gear Pump Load Sensing |
| Features | Boom Side Shift, Undercarriage Extension, High/Low Speed, LCD Display |
| Canopy | Standard 4-Post Canopy |
| Working Pressure | 16 Mpa |
| Hydraulic Flow Rate | 50 L/Min |
| Fuel Tank Capacity | 16 L |
| Hydraulic Tank Capacity | 16 L |

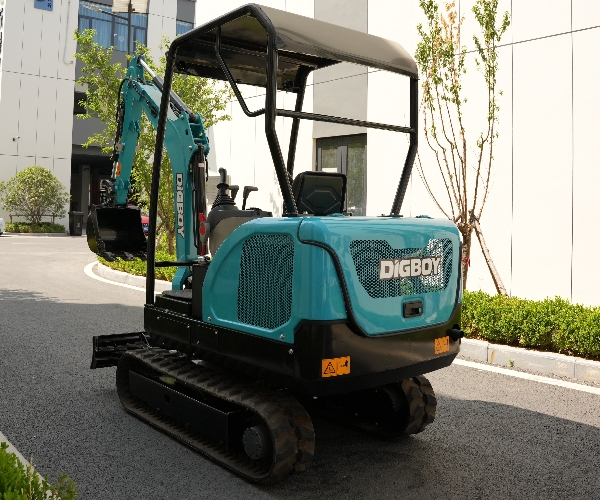

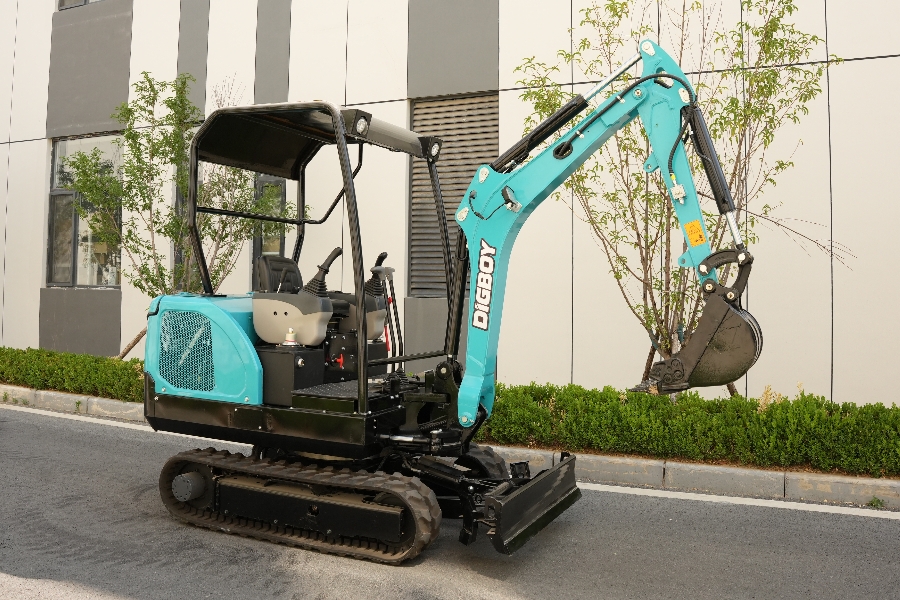

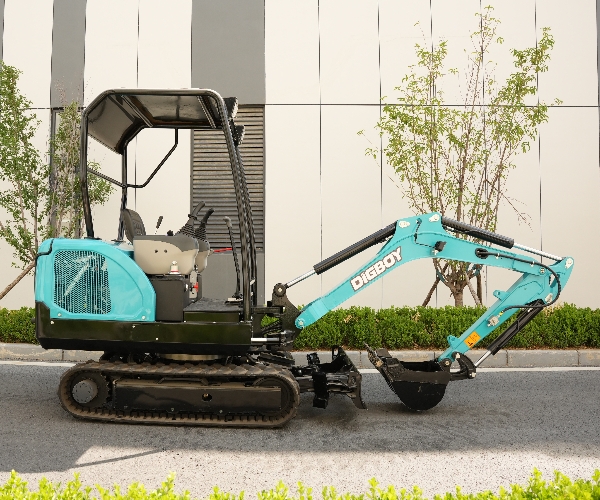

DBE20B Model
Key Specifications
| Bucket Capacity | 0.07 m³ |
| Max. Bucket Digging Force | 18 KN |
| Max. Arm Digging Force | 11 KN |
| Swing Speed | 0-9 rpm |
| Gradeability | 35° |
Engine
| Engine Model | KUBOTA D1105 |
| Rated Power | 14 kw / 18.8 hp |
| Rated Speed | 2200 rpm |
Overall Dimension
| Total Length (Transport) | 3555 mm / 140.0 in |
| Total Width (Transport/Operation) | 990/1300 mm / 39.0/51.2 in |
| Total Height (Transport) | 2330 mm / 91.7 in |
| Max. Digging Height | 3570 mm / 140.6 in |
| Max. Dumping Height | 2440 mm / 96.1 in |
| Max. Digging Depth | 2400 mm / 94.5 in |
| Max. Vertical Digging Depth | 2025 mm / 79.7 in |
| Max. Digging Radius | 4040 mm / 159.1 in |
| Min. Swing Radius | 1610 mm / 63.4 in |
| Tail Swing Radius | 650 mm / 25.6 in |
| Minimum Ground Clearance | 150 mm / 5.9 in |
| Axle Base | 1230 mm / 48.4 in |
| Wheel(track) Distance | 760 mm / 29.9 in |
Other Parameters
| System Pressure | 21.5 MPa |
| Max. Dozer Blade Lifting Distance | 240 mm / 9.4 in |
| Max. Dozer Blade Cutting Distance | 270 mm / 10.6 in |
Why Professionals Choose the DIG-BOY 2 Ton Mini Excavator

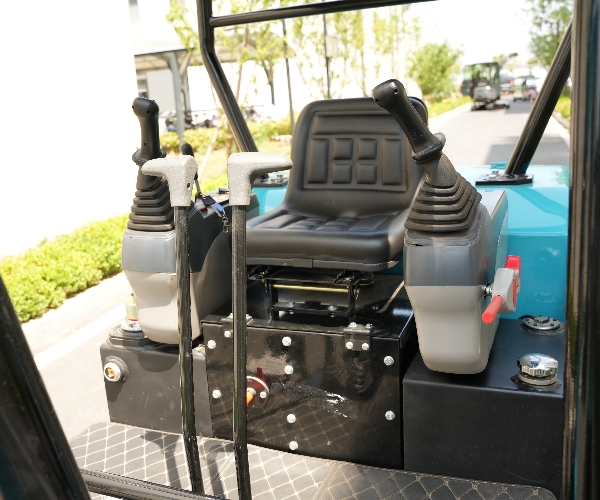

Because of the responsive, low-effort pilot controls and comfortable seating, operators experience less fatigue and can maintain high productivity throughout the entire workday.
Because every machine includes a standard canopy for protection and a better view, operators can work safely and with confidence.
For Confined Spaces

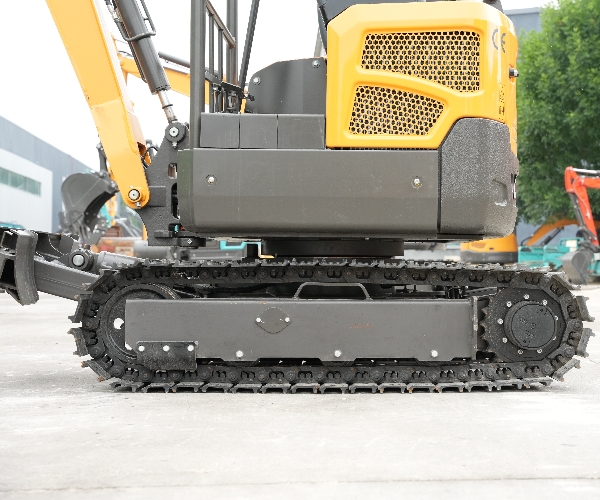

Because the chassis is extendable and the tracks are made of durable rubber, this compact excavator offers both excellent stability on uneven ground and the ability to retract to fit through narrow doorways and gates.
Very Low Noise
Because of the high-quality Kubota engine option, the machine operates with very low noise and vibration, making it the perfect choice for projects in residential areas, near hospitals, or indoors.
Durable Structure
Because we utilize high-strength steel and reinforced welding on all critical stress points, your excavator is built to withstand the rigors of demanding job sites, which results in lower lifetime repair costs and a higher resale value.
Because the optional extendable chassis provides a wider, more stable base, your operators can work with greater confidence and precision on uneven terrain.
Easy to Transport
Because of its compact footprint and optimized weight, this machine can be loaded onto a standard trailer, saving you significant transportation costs and hassle.

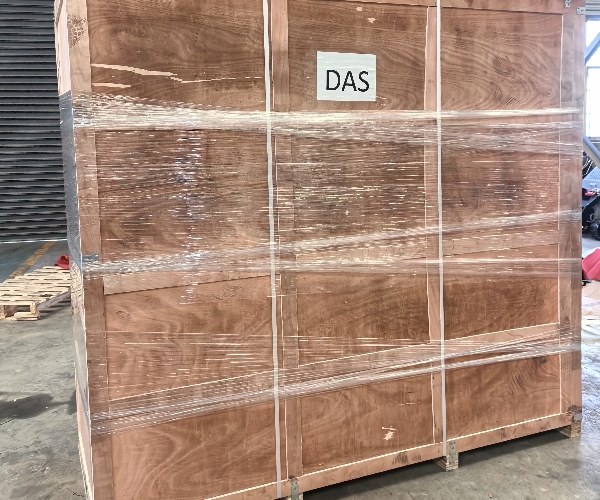

Because every excavator is securely packed in a reinforced wooden crate for export, it arrives at your location fully protected and ready for work, minimizing any risk of shipping damage.
Cost-Effective
Because this excavator delivers the performance of larger machines on many common tasks, you can achieve your project goals with a much lower initial investment and reduced daily fuel costs.
Because of its versatility and efficiency, your business will benefit from a faster return on investment, making this a truly profitable piece of mini construction equipment.
Top 3 Attachments for 1.8 Ton Excavator
Auger
Its hydraulic power ensures exceptional performance in construction and landscaping, easily drilling holes for posts, piers, and trees in various soil conditions.

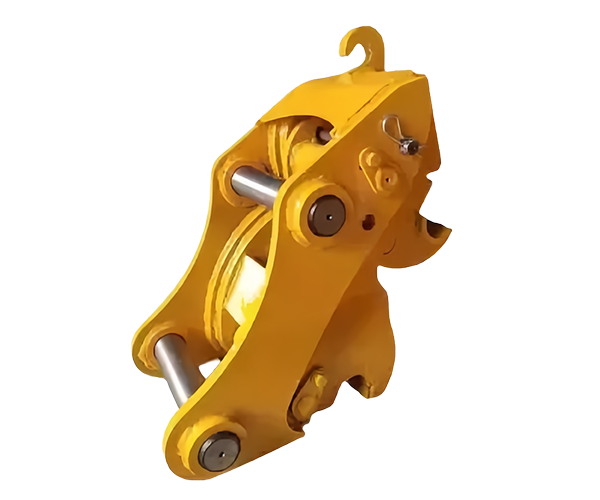

This is the key to maximizing your machine’s utilization. It helps optimize productivity by allowing a single operator to safely switch between attachments in minutes.

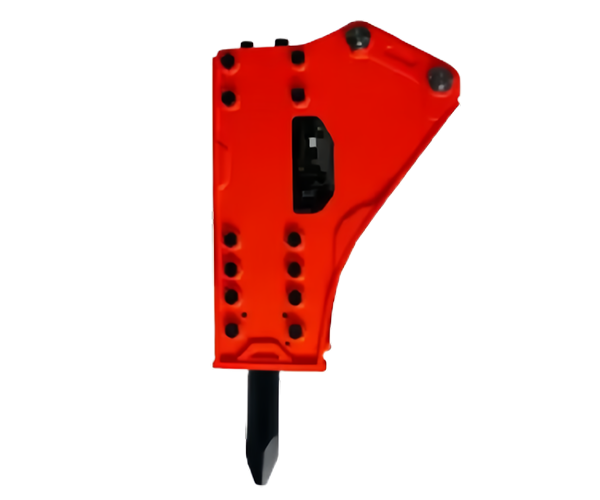

Hydraulic Breaker
Essential for demolition and road maintenance, this attachment helps in breaking tough materials like concrete and rocks, turning your digger into a versatile powerhouse.

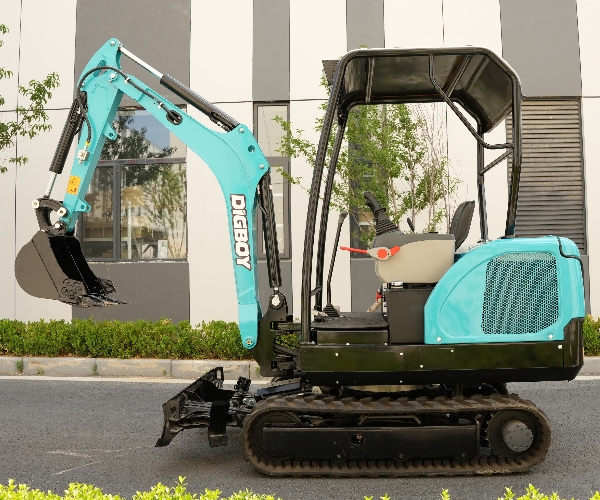

Boost Your Productivity with a Versatile 2 Ton Excavator
The DIG-BOY 2-ton mini excavator is designed to perform. With a wide range of available attachment options, from hammers to thumbs, you have the flexibility to take on more jobs. Dig, compact, or load—any task you need, this machine is ready to complete.
We understand that uptime is critical. That’s why we stand behind our commitment to fast parts delivery. It’s our responsibility to ensure your machine is running smoothly, and we work hard to ensure the timely shipment of all ordered parts.
Essential Maintenance for Your 2 Ton Excavator
Learn how to take care of your excavator to keep it working well and lasting a long time. Regularly clean and lubricate your machine, inspect it for any issues, and stay informed of the proper use and maintenance procedures. Always check the tracks for wear and tear and replace them if needed.
Understanding Digging Depth Capabilities
The digging depth of an excavator is a key performance indicator. While general figures range from 7 to 11 feet for hydraulic mini excavators, our 2-ton models are engineered for a competitive digging depth within their class. The precise specifications vary slightly by model. It’s always best to verify the exact digging depth specifications with the DIG-BOY team to ensure the machine you choose perfectly matches your project requirements.
Explore Our Full Range of Compact Excavators
Is the 2-ton model not quite the perfect fit for your specific needs? As a dedicated China mini digger manufacturer, DIG-BOY offers a complete lineup of machines. Whether you require a more powerful excavator for heavier tasks or a lighter model for extremely tight access, you’ll find the ideal solution below. Explore our other models to find the perfect match for your business.
DBE12A | 0.9 Ton
Engine power: 7.5KW / 10HP
DBE15A | 1.25 Ton
Engine power: 10.2KW / 18.1HP
DBE17A | 1.55 Ton
Engine power: 18.1KW / 25HP
DBE18B | 1.8 Ton
Engine power: 18.4KW / 25HP
DBE25A | 2 Ton
Engine power: 15.2KW / 20HP
DBE22A | 2.2 Ton
Engine power: 15.2KW / 20HP
DBE27B | 2.7 Ton
Engine power: 14KW / 19HP
DBE35B | 3.8 Ton
Engine power: 24.7KW / 33HP
Your Questions Answered by the Experts
The DBE25A and DBE20B are incredibly versatile. You can attach a wide range of implements including various bucket sizes, hydraulic thumbs, augers, breakers, rippers, and quick couplers to handle almost any task.
The key advantage is balance. It offers significantly more digging power and reach than smaller 1-ton models, while remaining compact enough to be easily transported and to work in confined spaces where larger machines cannot go.
Yes. We design our excavators with the operator in mind. With intuitive, industry-standard pilot joystick controls, even less-experienced operators can become efficient and productive in a very short amount of time.
A 2-ton excavator is a multi-purpose tool perfect for utility trenching, foundation digging, landscaping, interior demolition, pool and spa excavation, and much more. Its power and size make it ideal for a huge range of construction and agricultural jobs.
Our 2-ton models feature a versatile swing boom. This allows the operator to dig alongside walls or obstacles without repositioning the entire machine, which is a massive time-saver on constrained job sites. Please contact our team for the exact degree specifications.
We offer globally recognized engine brands like Kubota and Yanmar. This matters because it guarantees you are getting a reliable, fuel-efficient, and low-emission engine that can be easily serviced with readily available parts anywhere in the world. It's a key part of our commitment to quality and your long-term success.
