1.5 Ton Mini Excavator
- Meet EPA and Euro V Emissions
DBE15B & DBE17A: Your Compact Powerhouse
Trusted China Mini Excavator Manufacturer for Your Business
Finding a compact excavator that delivers serious power in tight spaces is a major challenge. Project delays and high labor costs often stem from equipment that is inefficient or simply can’t access the job site.
As an experienced mini excavator supplier from China, DIG-BOY understands these pain points. Our 1.5-ton series is purpose-built to be the solution. Easy to transport and simple to maintain, it’s a reliable, long-term investment designed to deliver a fast return. With just a bit of hands-on practice, your team can master this mini digger and manage a wide range of tasks with perfect efficiency.
DBE15B and DBE17A Specifications: A Side-by-Side Comparison

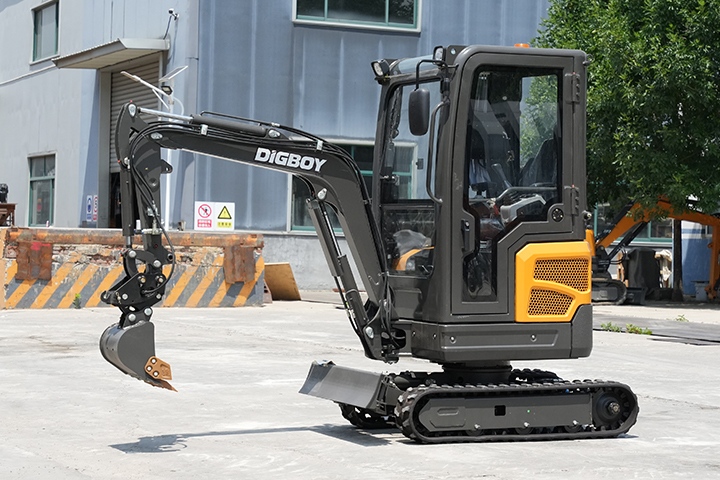

DBE15B Model
Key Specifications
| Bucket Capacity | 0.025 m³ |
| Operating Weight | 1500 kg / 3307 lb |
| Max. Bucket Digging Force | 9 KN |
| Max. Arm Digging Force | 5.5 KN |
| Swing Speed | 11-13 rpm |
| Gradeability | 30° |
Engine
| Engine Model | D722 |
| Rated Power | 10.2 kw / 13.7 hp |
| Rated Speed | 2500 rpm |
Overall Dimension
| Max. Digging Height | 2955 mm / 116.3 in |
| Max. Dumping Height | 2077 mm / 81.8 in |
| Max. Digging Depth | 2017 mm / 79.4 in |
| Max. Vertical Digging Depth | 1610 mm / 63.4 in |
| Max. Digging Radius | 3529 mm / 138.9 in |
| Tail Swing Radius | 655 mm / 25.8 in |
| Total Length | 3229 mm / 127.1 in |
| Total Width (Transport/Operation) | 990/1300 mm / 39.0/51.2 in |
| Total Height (Transport) | 2290 mm / 90.2 in |
| Minimum Ground Clearance | 153 mm / 6.0 in |
Other Parameters
| System Pressure | 20 MPa |
| Max. Dozer Blade Lifting Distance | 236 mm / 9.3 in |
| Max. Dozer Blade Cutting Distance | 229 mm / 9.0 in |
| Wheel(track) Distance | 790 mm / 31.1 in |
| Axle Base | 1190 mm / 46.9 in |

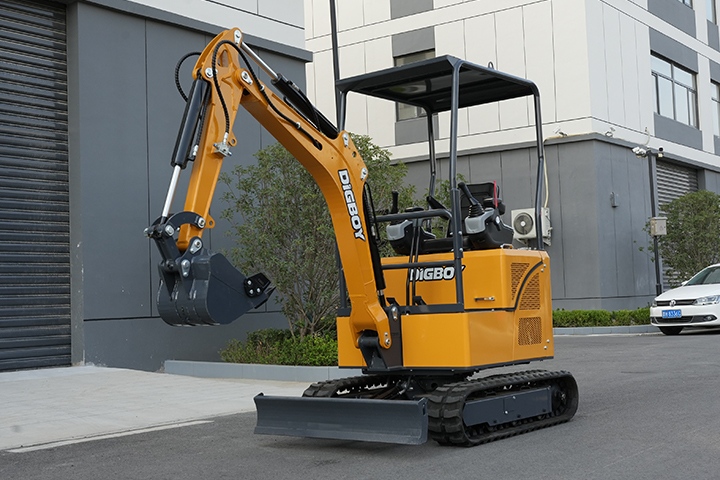

DBE17A Model
Key Specifications
| Operating Weight | 1550 kg / 3417 lb |
| Bucket Capacity | 0.04 m³ |
| Bucket Digging Force | 13.5 KN |
| Gradeability | 20° |
Engine
| Engine Model | Laidong 385 |
| Engine Power | 18.1 kw / 25 hp |
Overall Dimension
| Overall Dimensions (L*W*H) | 3390 x 1200 x 2400 mm / 133.5 x 47.2 x 94.5 in |
| Max. Digging Height | 3245 mm / 127.8 in |
| Max. Dumping Height | 2320 mm / 91.3 in |
| Max. Digging Depth | 2340 mm / 92.1 in |
| Max. Digging Radius | 3680 mm / 144.9 in |
| Swing Radius | 1540 mm / 60.6 in |
| Undercarriage Width | 1200 mm / 47.2 in |
| Ground Clearance | 150 mm / 5.9 in |
| Track Contact Length | 1100 mm / 43.3 in |
| Track Width | 230 mm / 9.1 in |
Other Parameters
| Working Pressure | 21 Mpa |
| Hydraulic Flow Rate | 50 L/Min |
| Fuel Tank Capacity | 17 L |
| Hydraulic Tank Capacity | 18 L |
| Pump | Piston Pump |
| Hydraulic Lines | Built-in |
| Cab | Flip-up Cab |
| Cylinder | Top-mounted Cylinder |
| Valve | Shut-off Valve |
DBE15B Features and Advantages

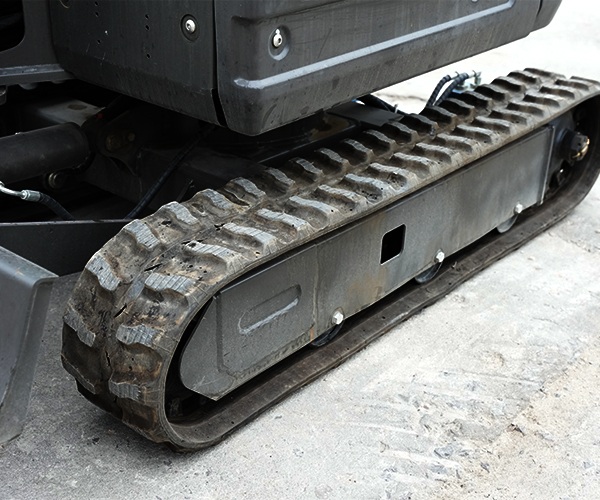

Because of its compact design and responsive hydraulics, your excavator can easily navigate narrow gates and confined job sites, which dramatically boosts your operational efficiency and machine utilization.
Because we provide easy access to all maintenance and cleaning points, you can speed up turnaround times and reduce costly downtime.

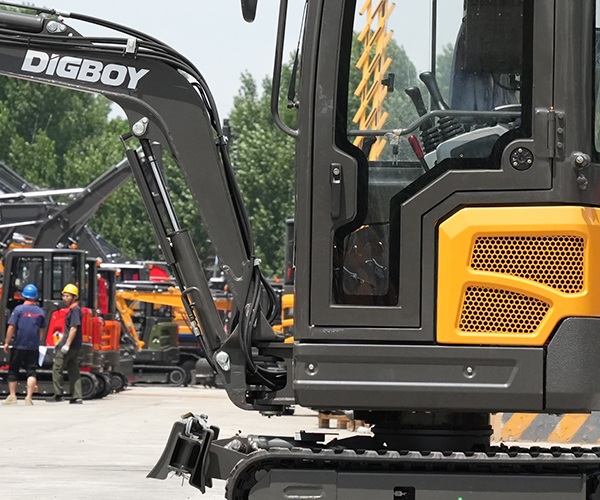

Tough Built
Because we use reinforced structural components and quality, durable hydraulic parts, this 1.5-ton construction equipment is built to handle the most challenging tasks, day after day.
Because you’ll experience fewer breakdowns and a longer service life, you can maximize the return on your investment.

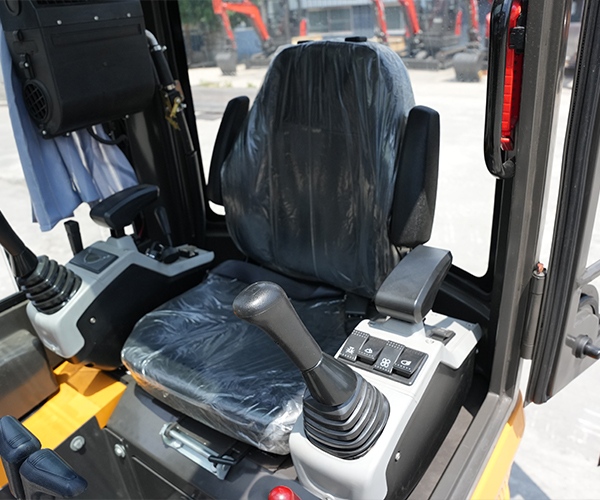

Safety Standard
Because operator safety is our priority, this machine is equipped with a certified ROPS/FOPS canopy and provides excellent all-around visibility to enhance performance and reduce risk on site.
Because operators feel secure and have clear sightlines, they can work with greater precision and confidence.

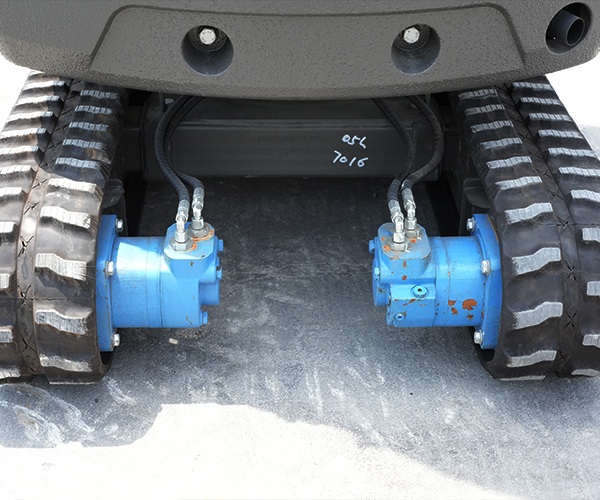

Durable Structure
Because we utilize high-strength steel and reinforced welding on all critical stress points, your excavator is built to withstand the rigors of demanding job sites, which results in lower lifetime repair costs and a higher resale value.
Because the optional extendable chassis provides a wider, more stable base, your operators can work with greater confidence and precision on uneven terrain.

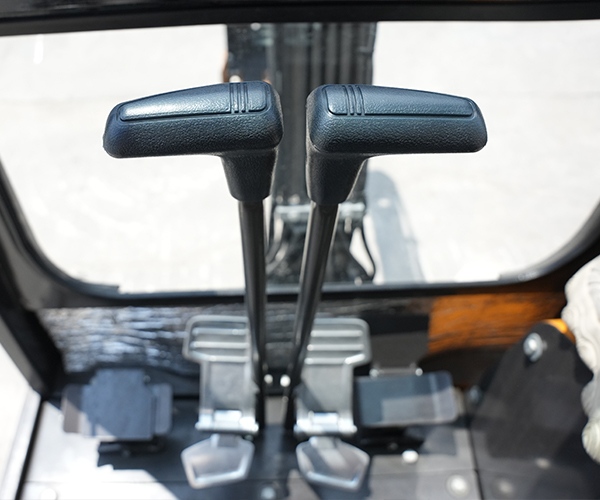

Simple Controls
Because the intuitive, industry-standard pilot joystick controls are ergonomically designed, new operators can become proficient in a matter of hours, not days.
Because the streamlined interface is clear and easy to understand, you will significantly reduce training time and get your projects started faster.
Top 3 Attachments to Maximize Your 1.5 Ton Excavator's Versatility
Auger
Transform your excavator into a high-efficiency drilling machine. Its hydraulic power ensures outstanding performance for construction, landscaping, and agriculture, delivering the torque needed for fast, clean holes.
Why waste valuable time changing attachments manually? The quick coupler helps optimize productivity by allowing operators to safely and rapidly switch between buckets, breakers, and augers during digging, lifting, and grading tasks.
Hydraulic Breaker
Tackle demolition and road maintenance with confidence. This attachment is essential for breaking up tough materials like concrete and rock, turning your 1.5-ton small digger into a powerful and precise demolition tool.
Order 1.5 Ton Excavator Today!
Availability: Standard models are in stock, ready for immediate dispatch.
MOQ: We start from a single unit order, supporting businesses of all sizes.
Warranty: Comprehensive One-Year Parts Warranty. We stand behind our equipment. Every DIG-BOY excavator comes with a one-year warranty on all non-wear parts, giving you peace of mind.
Delivery Time: Typically 15-20 days from order confirmation.
Customization Features: Full support for custom requirements.
Shipping Port: Qingdao
Transportation: Global ocean freight solutions.
Flexible Global Shipping (Incoterms Supported): Whether you need EXW, FOB, or DDP, we manage the logistics. We offer a full range of shipping terms to make your purchase process seamless.
Your Go-To Excavator Supplier for Customized Solutions
DIG-BOY compact machines are popular in the global market. So far, we have exported to Southeast Asia, America, Europe, and the Middle East, proving our commitment to quality and reliability.
We understand that every customer has unique needs. That’s why we don’t just sell machines; we build partnerships. We can customize new models based on your market preferences, offering options for engines, cabin types, various attachments, and even machine colors.
Explore More Similar Models to Compare
As an experienced mini excavator manufacturer, DIG-BOY offers a complete range of compact equipment. If you’re in search of similar models, we have you covered. Whether you need a smaller micro excavator for tight access or a machine with slightly larger capacity, explore our options to find your perfect fit.
DBE15A | 0.9 Ton
Engine power: 7.5KW / 10HP
DBE15B | 1.25 Ton
Engine power: 10.2/18.1KW / 14/25HP
DBE17A | 1.55 Ton
Engine power: 18.1KW / 25HP
DBE18B | 1.8 Ton
Engine power: 18.4KW / 25HP
DBE25A | 2 Ton
Engine power: 15.2KW / 20HP
DBE22A | 2.2 Ton
Engine power: 15.2KW / 20HP
DBE27B | 2.7 Ton
Engine power: 14KW / 19HP
DBE35B | 3.8 Ton
Engine power: 24.7KW / 33HP
Frequently Asked Questions
Yes. While our standard gear pumps are robust and highly efficient for most common tasks, we offer plunger pump upgrades for customers requiring higher pressure and flow for specialized hydraulic attachments. Let's discuss your specific application to determine the best fit.
Our one-year DIG-BOY warranty provides comprehensive coverage against defects in materials and workmanship for all non-wear parts. The benefit is clear: we protect your investment by supplying replacement parts free of charge during the warranty period, ensuring your machine stays productive and profitable.
For models with an enclosed cabin, an optional heating system is available. It is designed to provide comfort for the operator during cold weather, ensuring productivity doesn't drop with the temperature. This is a highly recommended option for customers in colder climates.
The hydraulic pilot valve lock is a critical safety feature. When engaged, it deactivates the joysticks and travel levers to prevent any unintentional movement of the machine. It is essential to use this lock whenever the operator is entering or exiting the cabin to ensure a safe working environment.
Absolutely. Our excavators are designed for versatility. You can easily purchase and install new attachments at any time as your business needs grow. We use industry-standard fittings to make expanding your machine's capabilities simple and cost-effective.
We maintain a comprehensive inventory of all critical service and replacement parts at our main facility. Because we understand that downtime costs you money, we prioritize parts orders and can typically dispatch standard items within 48 hours. This commitment ensures you can keep your machine running and your projects on schedule.
